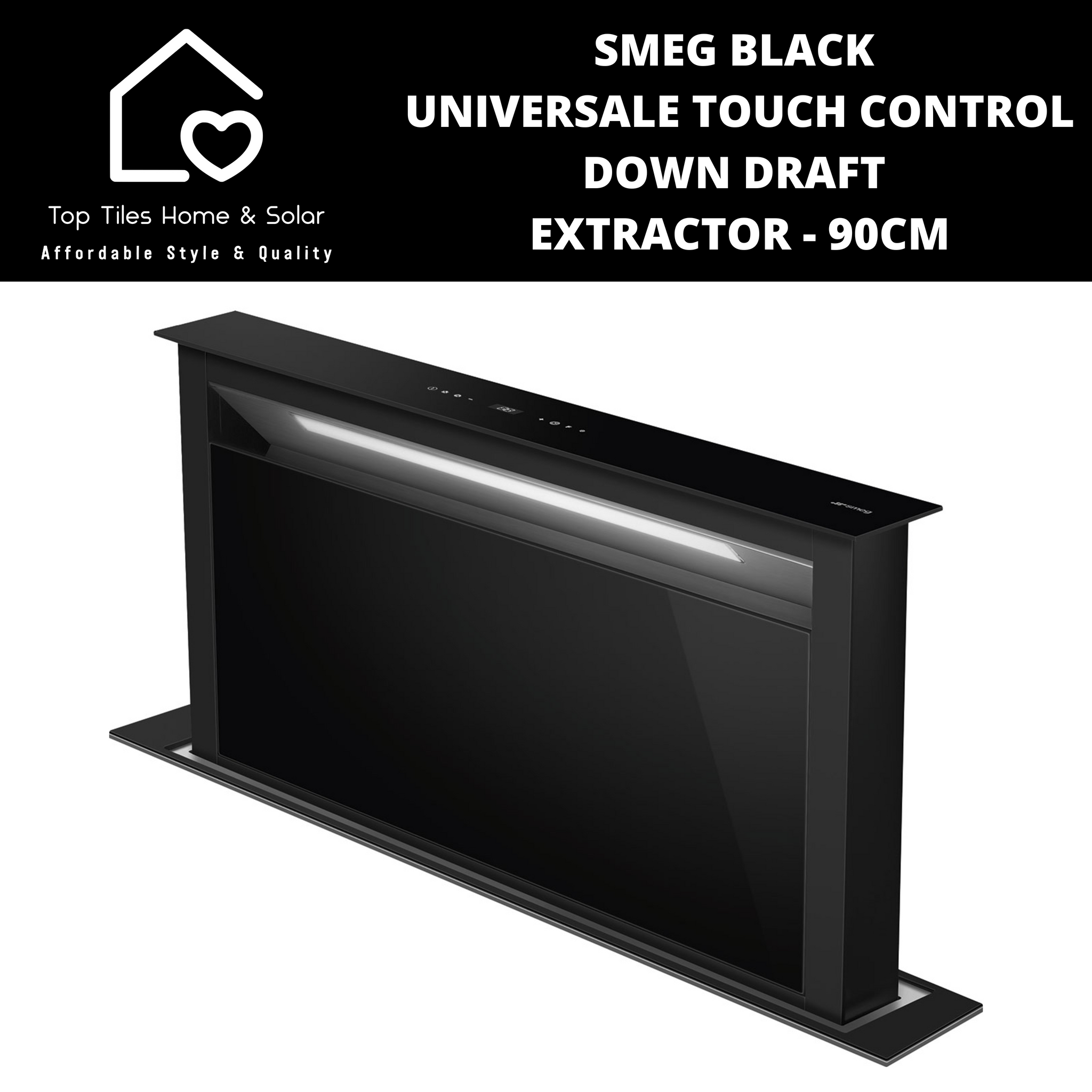

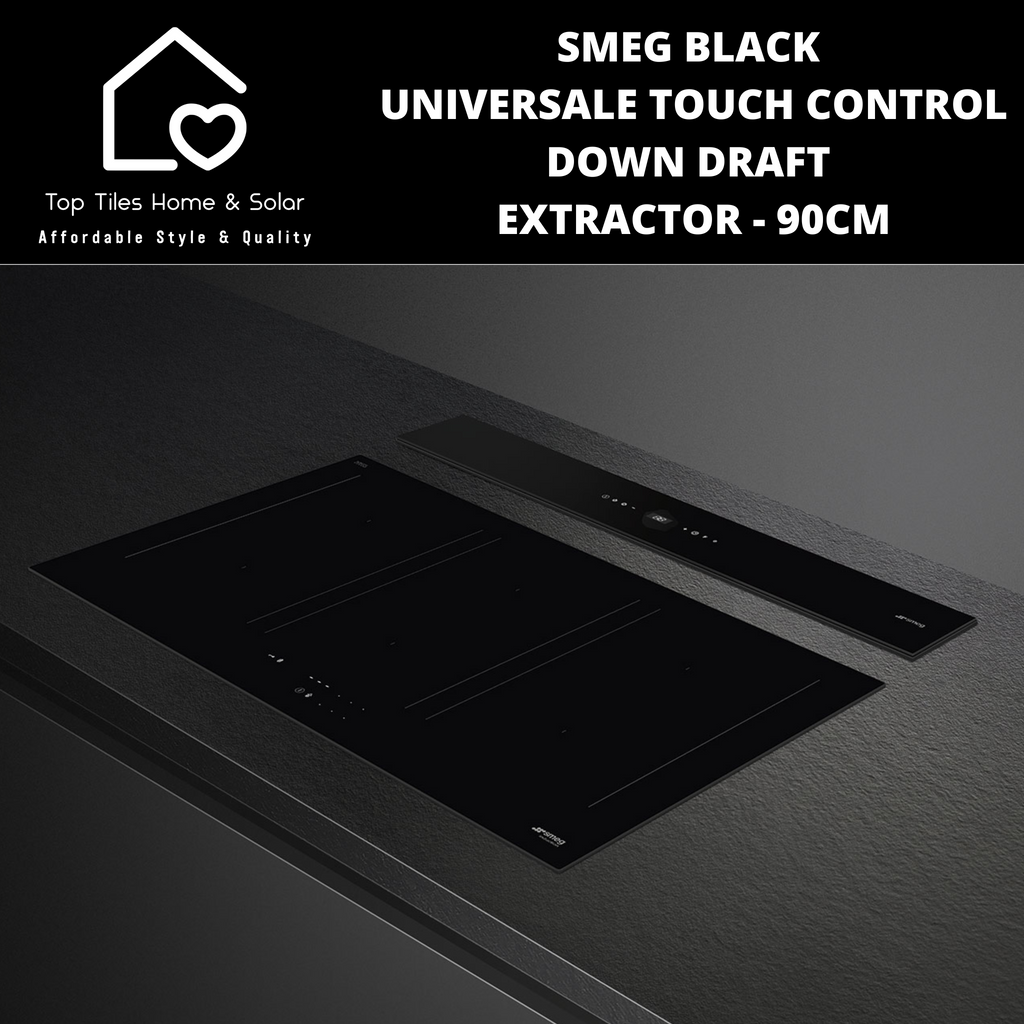

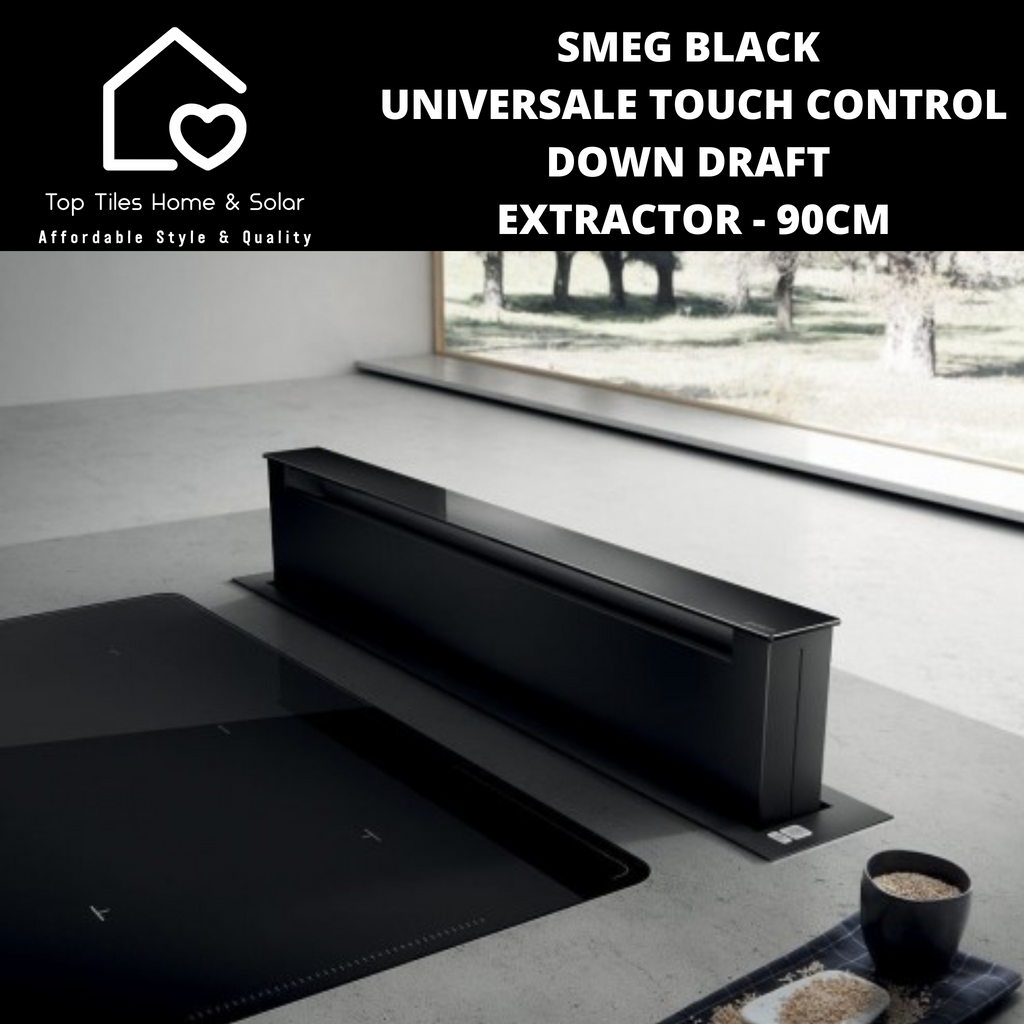

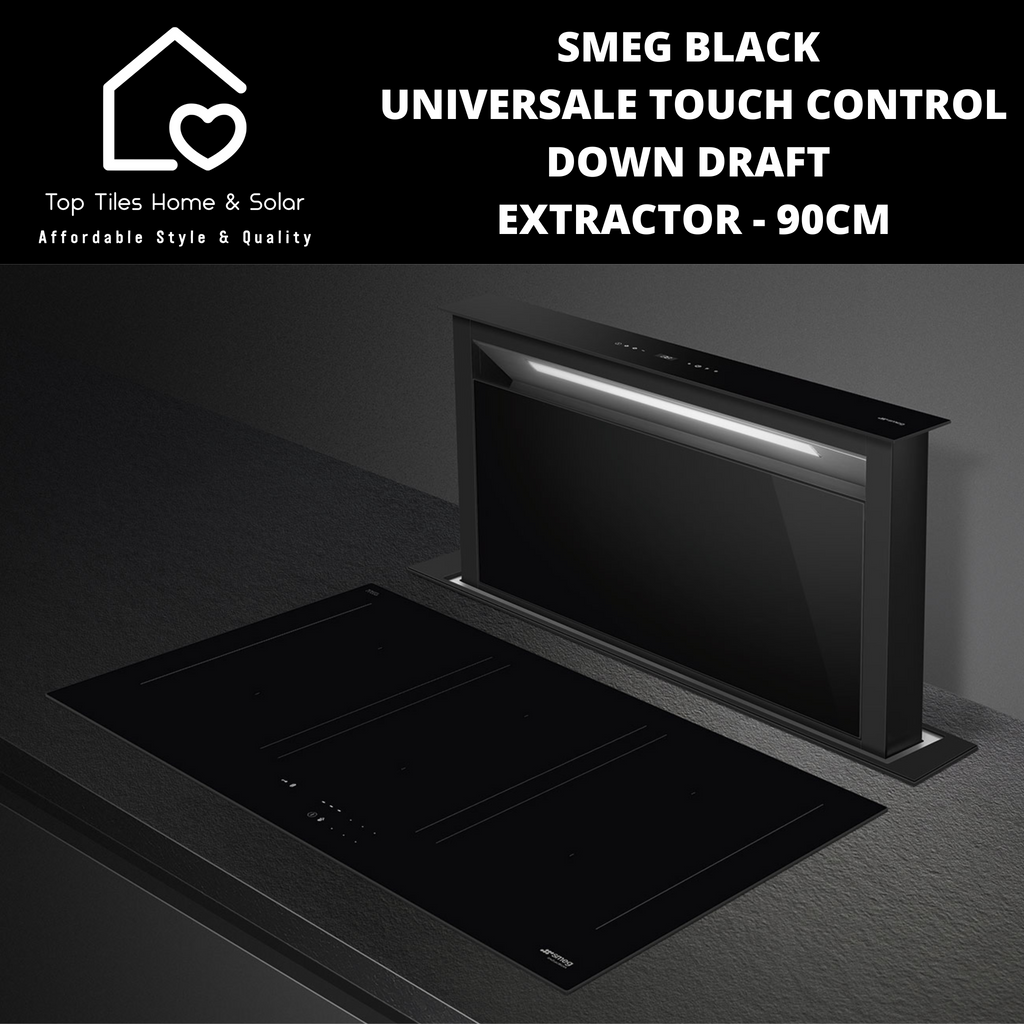

Smeg Black Universale Touch Control Down Draft Extractor - 90cm
Smeg Black Universale Touch Control Down Draft Extractor - 90cm
TYPE
Product family: Hood
Hood Type: Fully Integrated hood
Hood width: 90 cm
Extraction: Extraction
Electronic control: Yes
Perimeter extraction: Yes
EAN code: 8017709305796
AESTHETICS
Colour: Black
Finishing: Satin
Aesthetics: Universale
Design: Fully integrated
Material: Glass
Type of steel: Brushed
Glass Type: Black
PROGRAMS / FUNCTIONS
No. of speeds: 4
Intensive speed: Yes
24h air filter function: Yes
Time-setting options: Automatic switch-off
CONTROLS
Control setting: Touch control
Led color: Red
Display: Digital
TECHNICAL FEATURES
Remote motor: KITRBDD - Kit Optional
No. of lights: 1
Light type: LED
Light Power: 7 W
Dimmer mode: Yes
Light color temperature scale (°K): 4000 °K
Free outlet maximum capacity: 725 m³/h
Motor power: 270 W
No. of filters: 2
Anti-grease filters: Aluminium
Filter replacement indicator: Yes
Vent outlet: 150 mm
PERFORMANCE / ENERGY LABEL
Energy efficicency class ( EEC): A
Fluid Dynamic Efficiency class (FDEC): A
Grease Filtering Efficiency Class (GFEC): D
Lighting Efficiency Class (LEC): A
Annual Efficiency Consumption (AEChood): 58 kWh/a
Fluid Dynamic Efficiency (FDE): 30
Lighting Efficiency (LE): 29 lux/W
Grease Filtering Efficiency (GFE): 65.1 %
Air flow at minumum speed (Qmin): 160 m³/h
Air flow at maximum speed (Qmax): 350 m³/h
Air flow at boost speed (Qboost): 700 m³/h
Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 40 dB(A)
Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 54 dB(A)
Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 70 dB(A)
Power Consumption in Off mode (Po): 0.49 W
Time increase factor (F): 0.9
Energy Efficiency Index: 53.8
Measured air flow rate at best efficiency point (Qbep): 397 m³/h
Measured air pressure at best efficiency point (Pbep): 441 Pa
Measured electric power input at best efficiency point (Wbep): 162 W
Nominal Power consumption of the light system (WL): 7 W
Average illumination of the light on the cooking surface (Emiddle): 200 lux
Sound power level at highest setting (Lwa): 54 dB(A)
ELECTRICAL CONNECTION
Electrical connection rating: 277 W
Voltage: 220-240 V
Frequency (Hz): 50-60 Hz
Power supply cable length: 1500 mm
SPEED 1
Extraction rate IEC 61591: 160 m³/h
Noise level IEC 60704-2-13: 40 dB(A)
Power: 55 W
SPEED 2
Extraction rate IEC 61591: 290 m³/h
Noise level IEC 60704-2-13: 53 dB(A)
Power: 120 W
SPEED 3
Extraction rate IEC 61591: 350 m³/h
Noise level IEC 60704-2-13: 54 dB(A)
Power: 155 W
SPEED 4
Extraction rate IEC 61591: 430 m³/h
Noise level IEC 60704-2-13: 60 dB(A)
Power: 210 W
INTENSIVE SPEED
Extraction rate (IEC 61591): 700 m³/h
Noise level IEC 60704-2-13: 70 dB(A)
Power: 270 W
LOGISTIC INFORMATION
Dimensions of the product (mm): 1044x880x120
Width: 880 mm
Depth (mm): 120 mm
Product Height (mm): 1044 mm
Net weight (kg): 35.000 kg
